2C2W

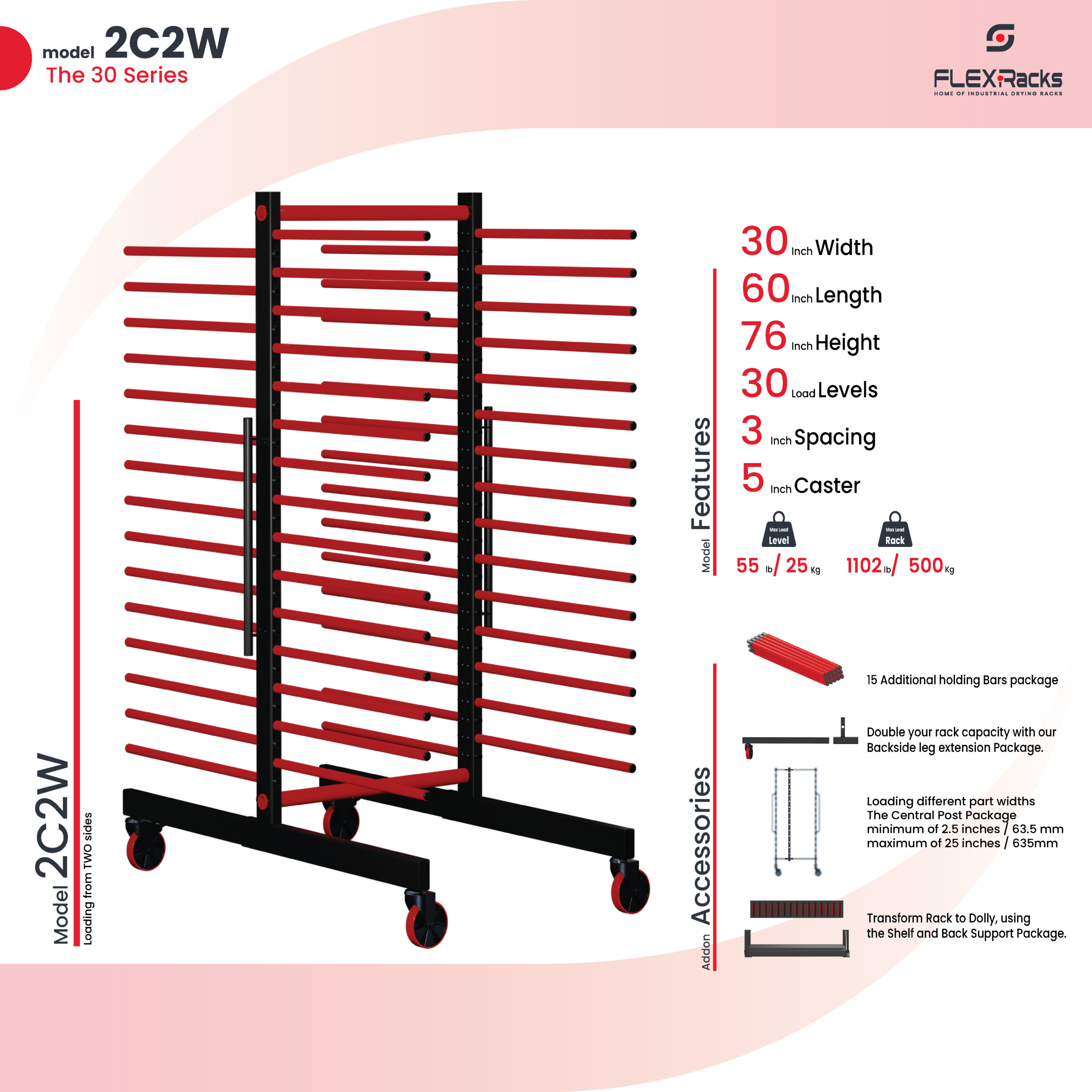

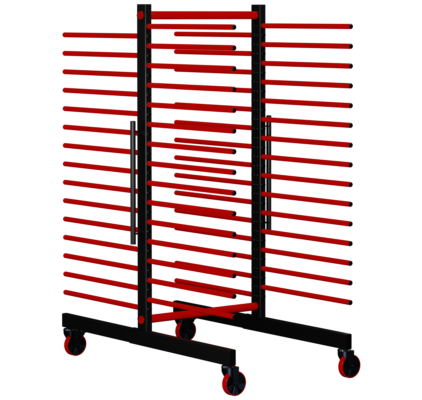

FlexiRacks Model 2C2W is a 30-inch-wide rack engineered for Double-side loading. It has 30 levels, each 30 inches (760 mm) long, and each level supports up to 55 pounds.
Features
- Double-Side Loading
- 30 Levels of loading parts.
- The Rack Width is 60 inches / 1524 mm.
- Each Level Tube is 30 inches / 765 mm long.
- Big Space between levels 3-inch / 76 mm
- Each level tube can be removed to increase the vertical loading space.
- Each level (2 tubes) can hold up to 55 pounds / 25 kg.
- Easy Assembly with user-friendly instructions.
- 5″ Heavy-duty 4 casters (2 locking)
Upgrade Option
- Increase Flexibility: Adding a central post allows you to load different parts sizes since it can move from a minimum of 2.5 inches / 63.5 mm to a maximum of 25 inches/635 mm. Check the 3C2W model.
- Rack to Dolly: Our unique patent feature, adding a shelf package, will transform this rack into a dolly, where you can transport all the parts in vertical loading between different departments, such as CNC, Sliding Table saw, Beam Saw, Edgebanding, or others. Check the 2CWD model.
Benefits
- Application: It is ideal for many industries, including woodworking, metalworking, Aircraft, Automotive Industry, and more.
- Protective Coating: All rack-level tubes are made of steel with a Protective coating to protect parts from damage and are resistant to all conventional paints, varnishes, oils, waxes, and water-based paints.
- Design to fit your needs
-
- Adjust vertical spacing — Removing any level tube will increase the vertical space, allowing you to accommodate thicker parts.
- Adjust Width Spacing — can slide Center Post and be fixed to the desired parts’ width.
- Small storage: space required for multiple racks
- Durability: Heavy-duty / Engineered to withstand heavy loads, made of Steel with powder-coated.
Explore our range of compatible Accessories, including additional tubes, center posts, and shelves, to enhance the rack’s functionality and meet your needs.
Key Features
- Double-Side Loading
- 30 Levels of loading parts.
- The Rack Width is 60 inches / 1524 mm.
- Each Level Tube is 30 inches / 765 mm long.
- Big Space between levels 3-inch / 76 mm
- Each level tube can be removed to increase the vertical loading space.
- Each level (2 tubes) can hold up to 55 pounds / 25 kg.
- Easy Assembly with user-friendly instructions.
- 5″ Heavy-duty 4 casters (2 locking)

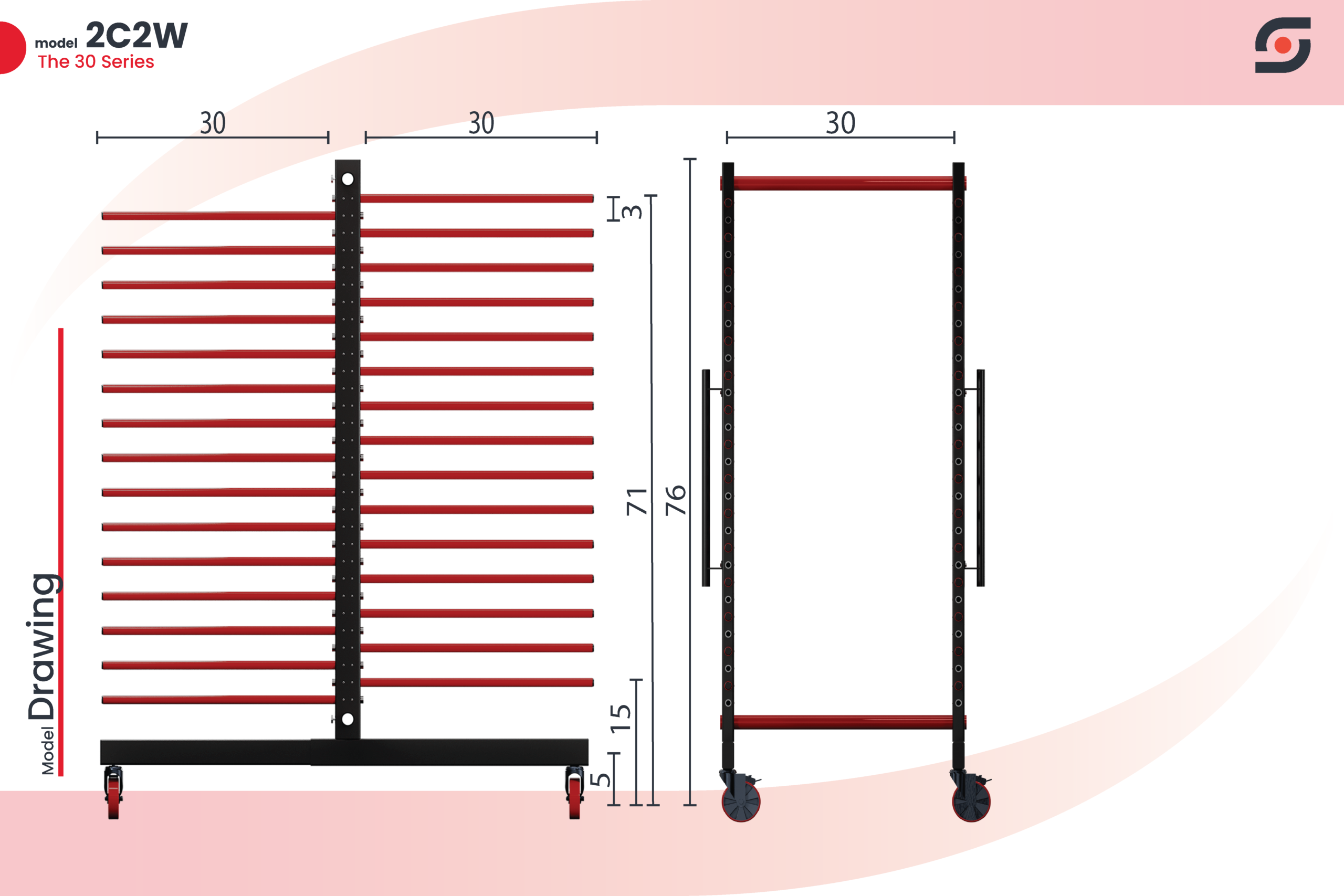

Racks specifications
| Model Name | 2C2W | ||
| SUK | 2C2W 11 24 31 41 | ||
| Dismissions | Length | Depth | Height |
| 30 in | 62 in | 67 in | |
| 765 mm | 1,575 mm | 1,702 mm | |
| Depth of levels | 30 in | / 765 mm | |
| Number of levels | 30 | ||
| Min / max distance between holding bars | 27.5 in / 698 mm | ||
| Clearance between levels | 3.0 in | / 76 mm | |
| Diameter of carrying bars | ø 1.0 in | / 26 mm | |
| Holding bars Covered | Rubber coating Light Blue | ||
| fixation of carrying bars | Slot in system with locking screw | ||
| 4 wheels, 2 with brakes | ø 5.0 in | / 127 mm | |
| Max. load: whole Rack / Trolley | 750 Kg | / 1653 lb | |
| Max. load: per level | 25 Kg | / 55 lb | |
| Material & Color | Steel with Powder coating RAL 9017 Black | ||
| Dispatched partly assembled in carton l x d x h |
|||
| mm | mm | mm | |
Assembly
Check the attached document.
