FlexiRacks 3C2W — 30-Inch Double-Sided Drying Rack with Central Post

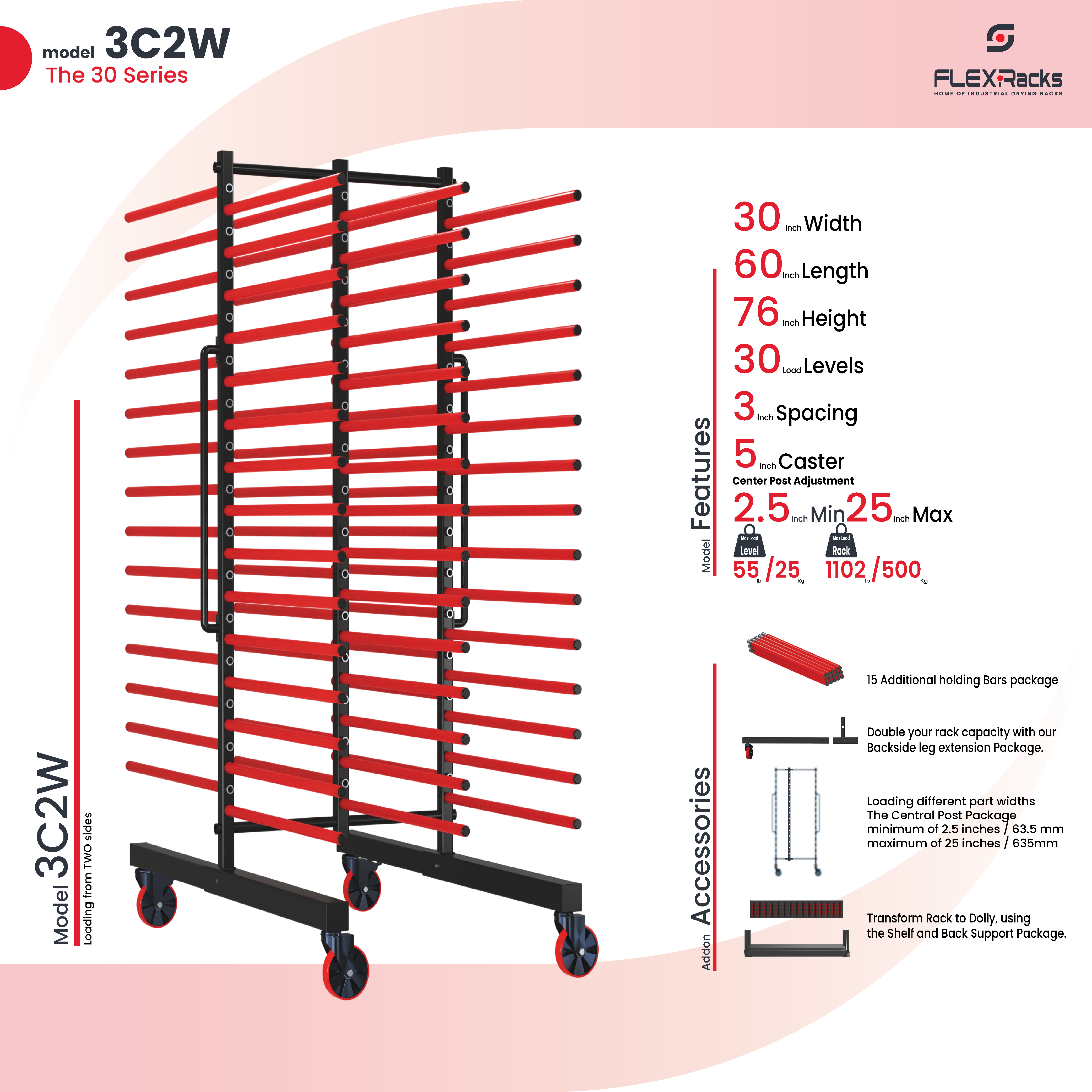

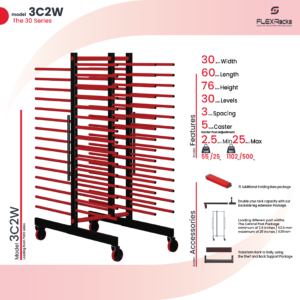

The FlexiRacks 3C2W is a 30-inch wide double-sided industrial drying rack with a sliding central post, combining maximum capacity with full-width flexibility. Load from both front and back while adjusting part width from 2.5 to 25 inches on the same rack. 30 load levels per side, each supporting up to 55 pounds. Ships within 2 weeks, 50% deposit secures your order.

This rack is right for you if:

You need maximum drying capacity AND width flexibility in one rack
You work with mixed part sizes — doors, face frames, panels of varying widths
You run a high-volume cabinet shop, woodworking, automotive, or finishing operation

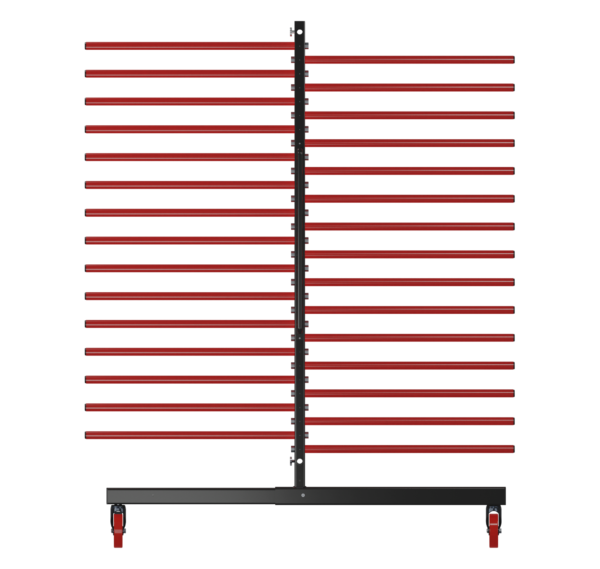

You want to load from both sides to process two batches simultaneously

This rack may not suit you if:

You only need single-sided loading — the 3CW model is more compact and affordable
You do not need a width adjustment and want a simpler operation — see the 2C2W model
You need 60-inch wide rack space — see the 4CWL model

Upgrade Options

Rack to Dolly — Add the shelf package to convert to a vertical loading dolly. See the 2CW2S model.

SKU: FR-3C2W-001 Categories: 30-Inch Wide Racks, All Products, Loading - Both sides Brand: FlexiRacks

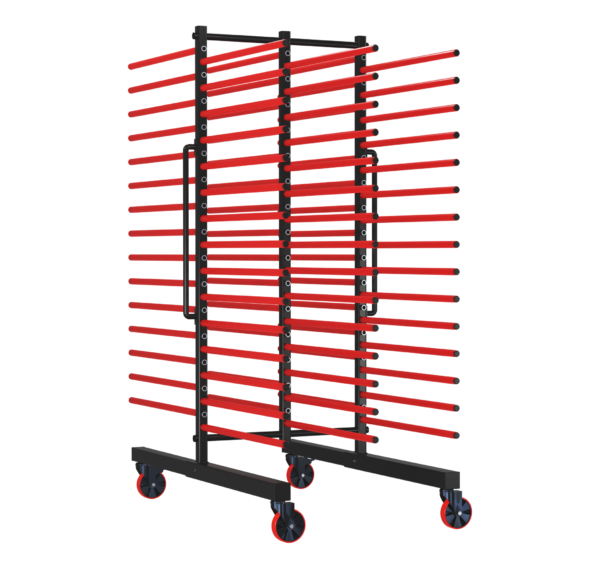

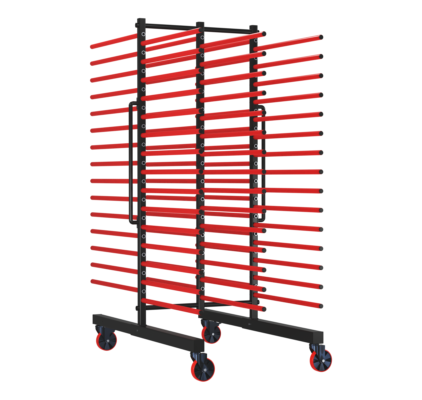

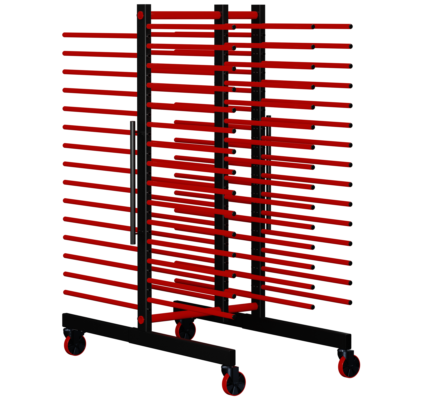

The FlexiRacks 3C2W is the most versatile rack in the 30-inch range, combining double-sided loading with a sliding central post that adjusts to accommodate any part width from 2.5 to 25 inches. Whether you are drying narrow face frames, wide cabinet doors, or mixed batches of components, the 3C2W handles it all from a single rack position on your workshop floor.

Built for high-volume cabinet shops, woodworking facilities, automotive refinishing shops, aerospace facilities, and metal fabrication operations. The powder-coated steel frame handles up to 500kg total rack load while remaining fully mobile on five-inch heavy-duty casters. All holding bars carry a rubber protective coating resistant to conventional paints, varnishes, oils, waxes, and water-based paints.

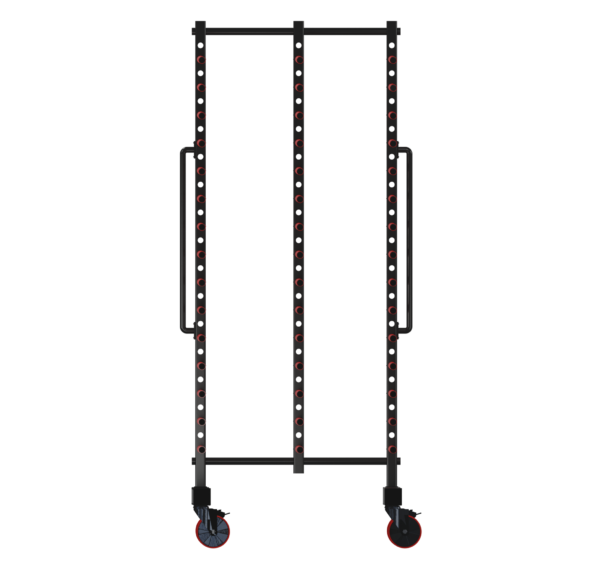

The sliding central post locks at any position between 2.5 and 25 inches, allowing you to process narrow and wide parts on the same rack without reconfiguring. Load from both sides simultaneously to maximise throughput and minimise floor space usage. This makes the 3C2W the ideal choice for operations that handle a variety of part sizes throughout the working day.

Each holding bar installs and removes using a slot and locking screw system, allowing you to adjust vertical spacing in seconds without tools to accommodate thicker or larger parts. Remove individual levels entirely to create extra clearance for oversized components without affecting the rest of the rack.

The modular design means the 3C2W is fully compatible with all FlexiRacks accessories. Add the shelf package to convert the entire unit into a vertical loading dolly for transporting finished parts between departments, such as CNC, sliding table saw, beam saw, and edgebanding, without reloading or handling individual pieces.

Looking for single-sided loading with a central post? See the 3CW model. Need double-sided without width adjustment? See the 2C2W model. Inquire today and receive your rack within 2 weeks.
